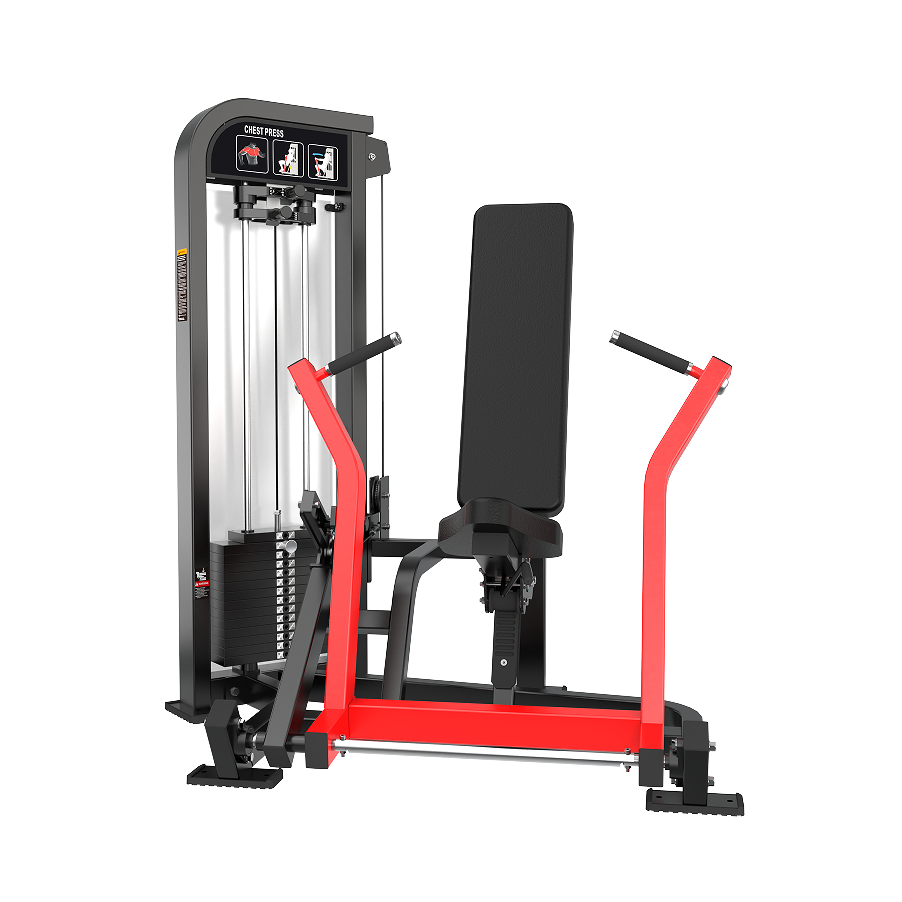

DH01 Chest Press Trainer
♦ Main Application:
1. Design: Main body: 50*80*T2.5 rectangular tubing; door frame: 50*100 rectangular tubing; protective panel: ABS protective panel (semi-transparent frosted finish).
2. Steel: National standard Q235 steel; counterweight: 96+4.66KG; internal shock-absorbing pads. (Single counterweight weight: 7KG; counterweight hole spacing: 180mm).
3. Manufacturing Process: Imported laser cutting – intelligent robot welding – surface shot blasting and rust removal – closed-loop fully automatic electrostatic spraying.
4. Accessories: Imported steel wire rope (7 strands, 19 wires), 4.8mm diameter; Seat adjustment structure: roller + torsion spring adjustment.
5. Seat cushion: high-density compressed sponge; handle: high thermoplastic elastomer PVC material (double-through round tube handle cover) with two-piece handle set, less prone to damage, improving product durability.
6. Pulleys: Standard nylon pulleys. 7. Label: Door top logo label (aluminum alloy).
8. Pull pin cap: Standard configuration uses nylon end caps (standard black). See the image below.
9. Magnetic pin: Standard configuration uses nylon end caps (standard black).
10. Counterweight guide rod uses a φ20 solid chrome-plated optical shaft.
11. Enamel disc material: high-molecular polyethylene; Standard counterweight weight (KG): 96+4.6; Optional weight (KG): ①117+4.6 ②138+4.6 (instrument).
12. Net weight (KG): 229.
