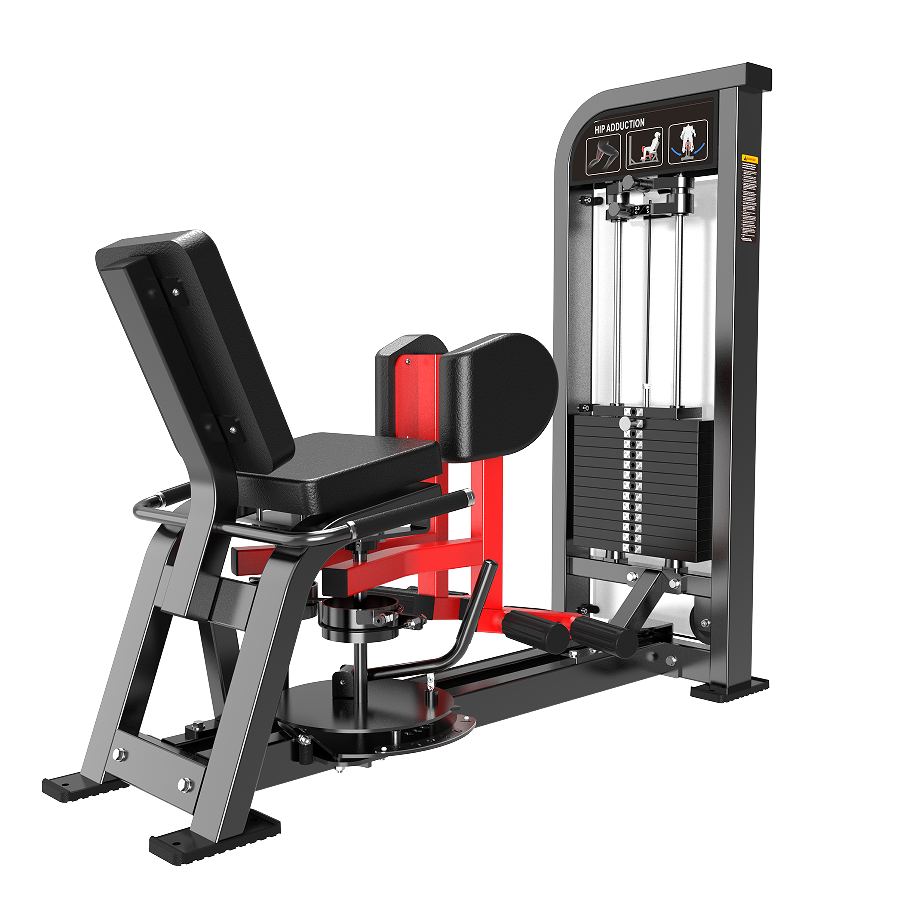

DH16 Inner Thigh Trainer
♦ Main Application:
1. Design: Main body 50*80*T2.5 rectangular tubing, door frame 50*100 rectangular tubing, ABS protective panel (semi-transparent frosted finish).
2. Steel: National standard Q235 steel, counterweight 96+4.66KG, with internal shock-absorbing pads. (Single counterweight weight 7KG, counterweight hole spacing 180mm).
3. Process: Imported laser cutting – intelligent robot welding – surface shot blasting and rust removal – closed-loop fully automatic electrostatic spraying.
4. Accessories: Imported steel wire rope “seven strands nineteen wires” steel wire rope, diameter 4.8MM; Seat adjustment structure: roller + torsion spring adjustment.
5. Seat cushion high-density compressed sponge, handle high thermoplastic elastomer PVC material (double-through round tube handle cover) with two-piece handle cover, not easy to break, improving product durability.
6. Pulleys: Standard nylon pulleys.
7. Label: Door top logo label (aluminum alloy).
8. Pull pin cap: Standard configuration uses nylon end caps (standard black).
9. Magnetic pin: Standard configuration uses nylon end caps (standard black).
10. Counterweight guide rod uses φ20 solid chrome-plated optical shaft.
11. Enamel disc material: high molecular weight polyethylene; Counterweight Standard weight (KG) 96+4.6 Optional weight (KG)
① 117+4.6
② 138+4.6 (KG) 229
